OEM ODM Project Smart Terminal Design MT6735 Module Android pcb development

FOB Reference Price:Get Latest Price
  • 1000 - 2999 Pieces
    $80.00
  • >=3000 Pieces
    $75.00
Lead Time:
Quantity(Pieces) 1 - 1000 1001 - 5000 >5000
Est. Time(days) 15 30 Negotiable
Customization:
Functions customization (Min. Order: 1000 Pieces)
OEM/ODM (Min. Order: 1000 Pieces)

More

New project customization (Min. Order: 1000 Pieces)
Total solution (Min. Order: 1000 Pieces)
Graphic customization (Min. Order: 1000 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
OEM ODM
Model Number:
MT6735
OS:
Android 5.1 (64bit)
CPU:
Quad-core ARM Cortex-A53
ROM & RAM:
8GB eMMC + 8Gb LPDDR3
Connectivity:
WiFi, FM, Bluetooth, GPS,
GSM/GPRS/EDGE:
Band3/8
Display:
Up to Full HD 1080P (1080x1920)
Touch Panel:
Captive Touch Panel
Front Camera:
13MP
OEM ODM PCBA:
Total solution supported
Application:
Android pcb development
Supply Ability
Supply Ability:
50000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Package
OEM ODM Project Smart Terminal Design MT6735 Module Android pcb development
Port
Shenzhen
Lead Time :
Quantity(Pieces) 1 - 1000 1001 - 5000 >5000
Est. Time(days) 15 30 To be negotiated

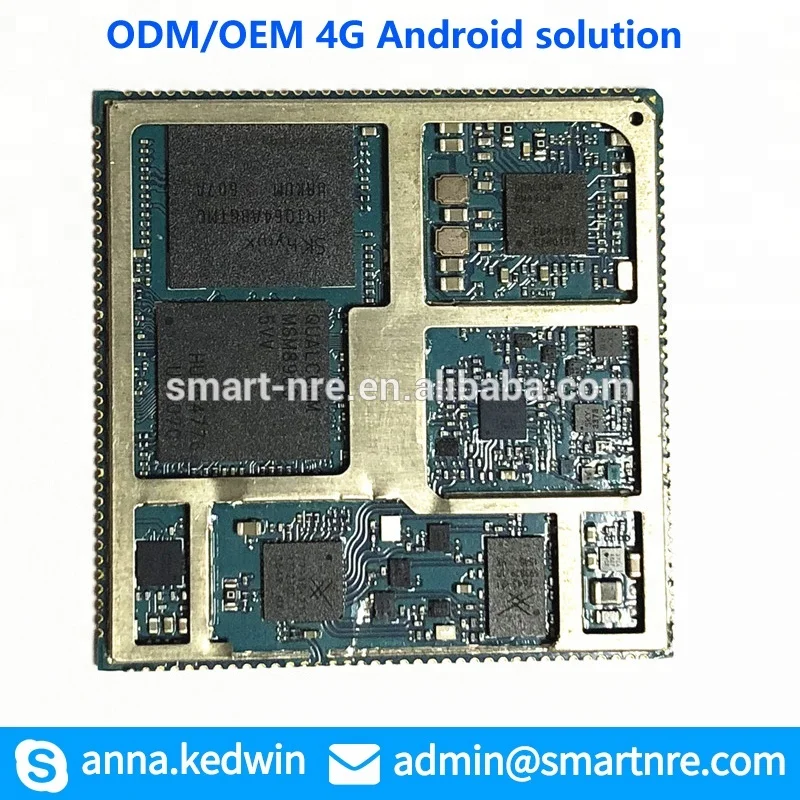

Module introduction

OEM ODM Project Smart Terminal Design MT6735 Module Android pcb development

MT6735 Module is a LTE module based on Mediatek MT6735 platform, the module integrated Application Processor and LTE modem, runs on Android 5.1 operation system. It can be second developed on the Application Processor and Android System. There are many peripheral interfaces you can use to connect and control other devices, like I2C, SPI, UART, USB OTG, GPIO, INT etc. This module is powerful and cost-effective, has good expand-ability and flexibility in design, it can meet various demands on products. It is widely used on Consumer Electronics, Industry Equipment, etc. When you have the demand of nearby or remote communication, smart device, Android system, our Core Board MT6735 module can be used.

Product Description

OEM ODM Project Smart Terminal Design MT6735 Module Android pcb development

Main Characteristic of module MT6735:


OS : Android 5.1 (64bit)
CPU: Quad-core ARM Cortex-A53 up to 1.3Ghz,512KB unified L2 cache
ROM & RAM: 8GB eMMC + 8Gb LPDDR3(optional 16GB+16Gb,32GB+16Gb)
Connectivity:
WIFI: Support 802.11 a/b/g/n
FM: FM Receiver
Bluetooth: BT 4.0
GPS: GPS/Beidou/Galileo/Glonass
A-GPS: Support

Band Support
TDD_LTE: Band38/39/40/41(2555~2655MHz)
FDD_LTE: Band3/1
WCDMA: Band1/8
TDSCDMA: Band34/39
GSM/GPRS/EDGE: Band3/8
GPRS/EDGE Class 12
CDMA2000(EVDO) 800

User interface
Display:Up to Full HD 1080P (1080x1920)
Touch Panel:Captive Touch Panel
Front Camera:13MP
Rear Camera:13MP


Product Spec.

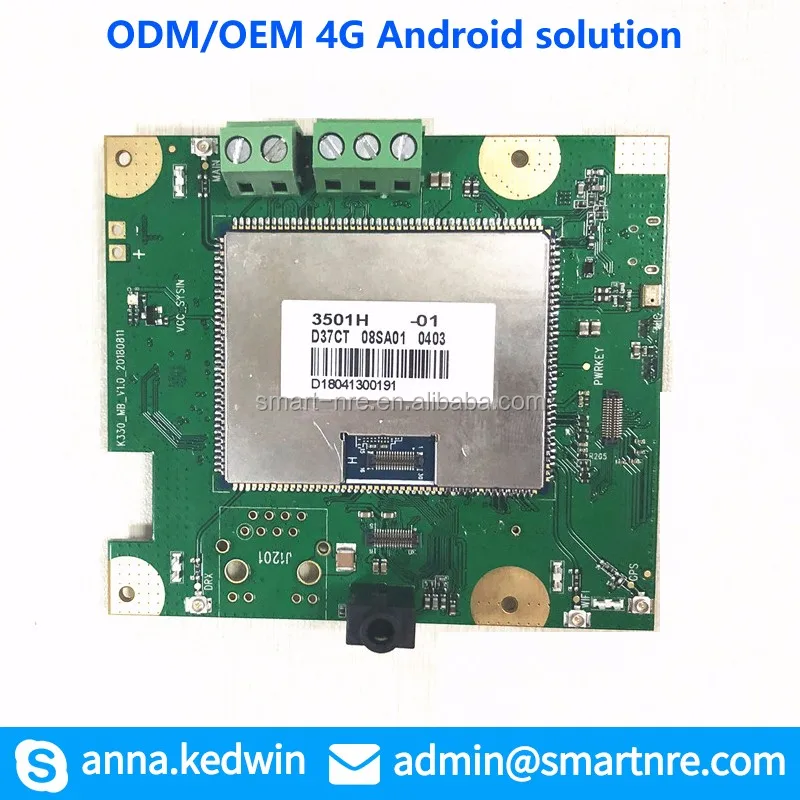

Main Board design:Core board & Mother board.
Supply Voltage:3.6V~4.5V

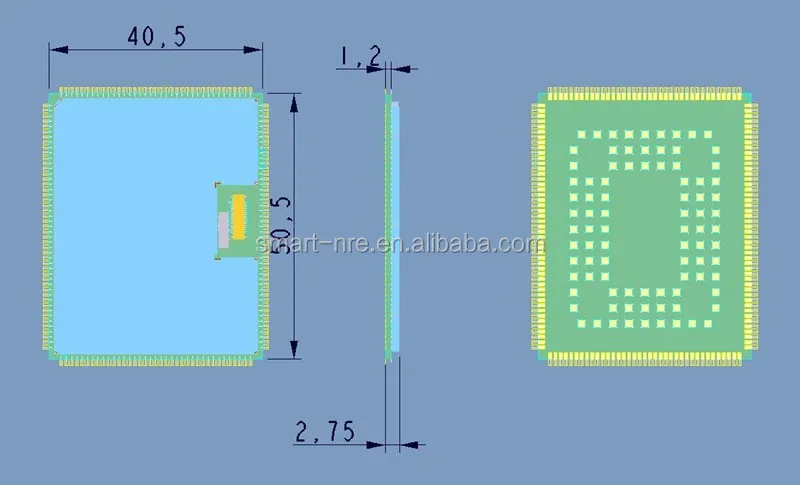

Dimension:40mm * 50mm *2.8mm
Package: 168 pin LCC
Operation Temperature(-20°~+70°Centigrade)
Four Antenna interface(WIFI/BT, GPS, LTE Main, LTE Diversity Rx)

Peripheral Interface
1x SDIO2.0
1x SPI
2x SIM Card
4x UART
4x I2C
Audio:2x MIC input, 1x Speaker output, 1x Receiver output, 1x Earphone output.
1x USB OTG
3*3 matrix keyboard interface.
Multiple external interrupt input.

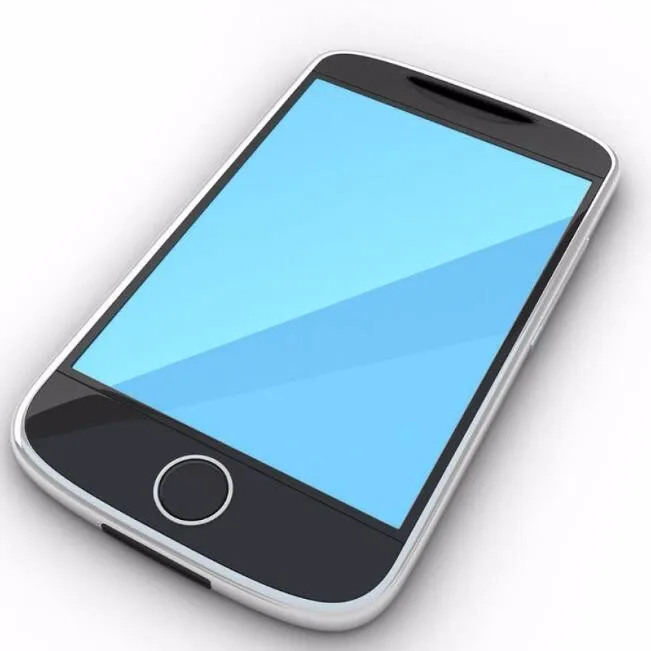

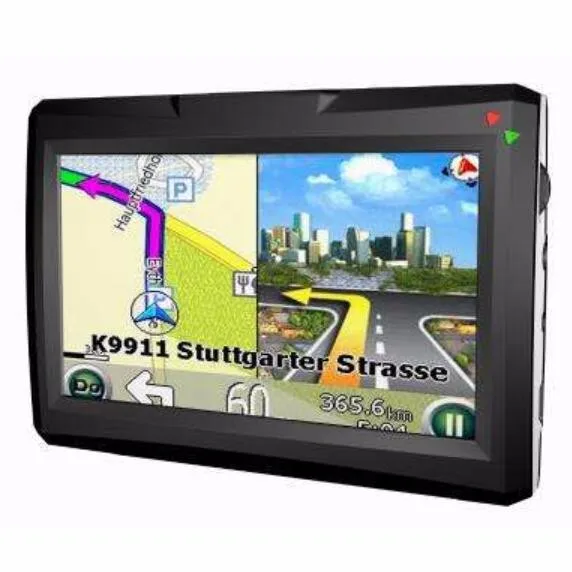

Application products
Our business model

What's our business model?

1, We provide the developed module and SKD for your second-development. Technical support about this module will be provided.

2, We design the PCBA according to your requirements. We provide the PCBA with this module, you take charge of the cover and other parts of this product.

3, We provide the total solution for your project. Total solution includes the PCBA research and development, Interface design, Mechanical design, prototyping, moulding production, small quantity trial production and bulk quantity production, shipping. Applications for Android / IOS and Cloud server platform can also be made in our company (Our client usually take charge of APPs and platform software by themself).

In summary, we provide the long range service, from the basic R&D of the module, to one-stop total solution.

How to start

How to do when you want us to develop for your project?

A) For module providing only:

1, Tell us the product and requirements of your product.
2, We suggest the suitable module and offer price.
3, Client pay for the SDK cost, and get some pcs of development board.
4, After the development finished, we provide the module in quantity. The SDK cost will be returned when order achieved 100k pcs.

B) For PCBA development or total solution:
1, List all of the features and functions of your product.
2, Describe the usage case of this product, make sure we understand your requirements.
3, We confirm these functions and features, offer the solution including the main technology we will use, the expense and the lead time.
4, Client arrange the payment and we start to develop.
5, We provide the PCBA or total samples for testing.

6, After the testing confirmed, we provide the PCBA or finished products in quantity. The development cost will be returned when order achieved 100k pcs.

About us

Smart NRE:

NRE means "Non-Recurring Engineering".
Smart NRE company develops and manufactures smart products, such as GPS phone, 3G GPS smart watch, Bluetooth products, Android system devices and tracking devices.

We have several years of design and development experience and manufacturing.
Our company was the first company which started to develop the Bluetooth smart watch in Shenzhen;
We developed the Bluetooth dialler for ZTE, it was the first Bluetooth solution which supported two-way communication.

In 2016 we delivered the first feature phone with FDA standard heart rate monitor and pulse oximeter functions. This has been patented and the product is being shipped to a few countries in Europe and the Far East.

In 2017 we developed the round 3G GPS watch for AT&T operator in USA, this watch has the special mechanical design and wireless charger.

An application for tracking has been developed for IOS and Android phone. A service platform on PC for elderly service also be supplied.

We can handle OEM/ODM projects from PCBA design, APP design, software design, hardware design, ID&MD design, cloud server development. We can manufacture prototypes, small production series and bulk production.

In a contracted project we generally design and prototype at cost with the prerequisite that we do the manufacturing for you. Let us know your requirements, you will have a total solution in 48 hours.
